Pinch Measurement Case
A modular system for precise measurement of temperatures and volume flows for analyzing thermal systems within industrial processes, building, and energy systems.

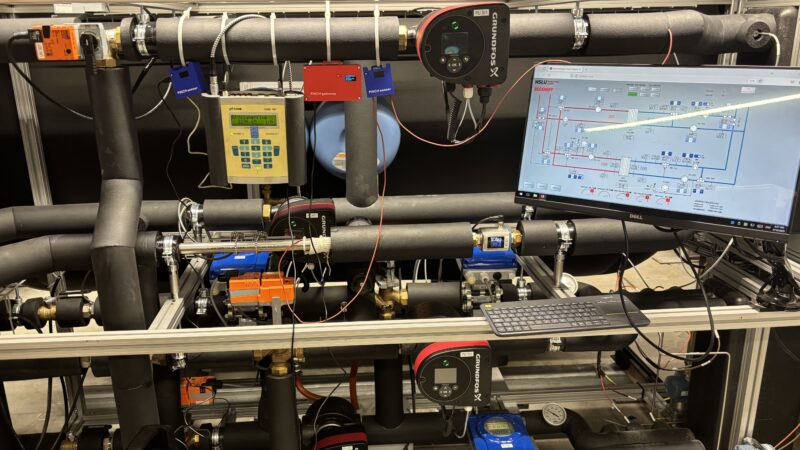

The Pinch Measurement Case makes it possible
The measurement case enables non-invasive measurement of temperature and volumetric flow for a wide range of media in pipes of any size.
The recorded data is automatically and securely transferred to the cloud, enabling continuous monitoring and analysis of the processes.
Data transfer is carried out wirelessly via an existing Wi-Fi connection or mobile network.

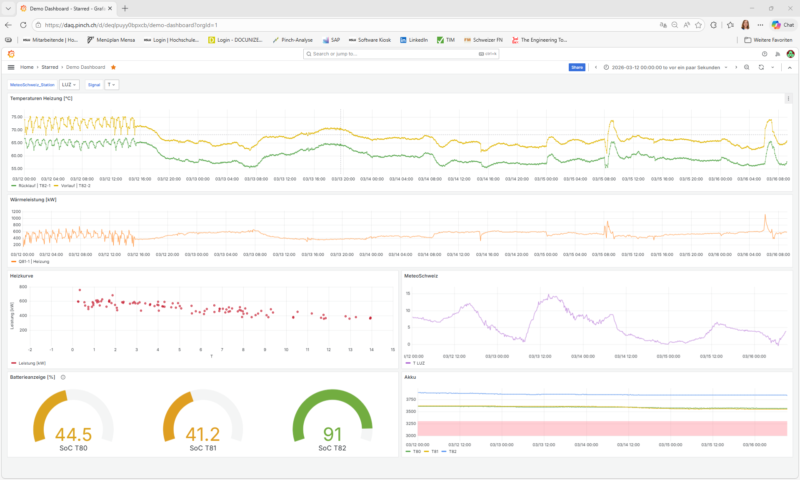

Explore the online visualization (Log in: daqdemo | HSLU2025):

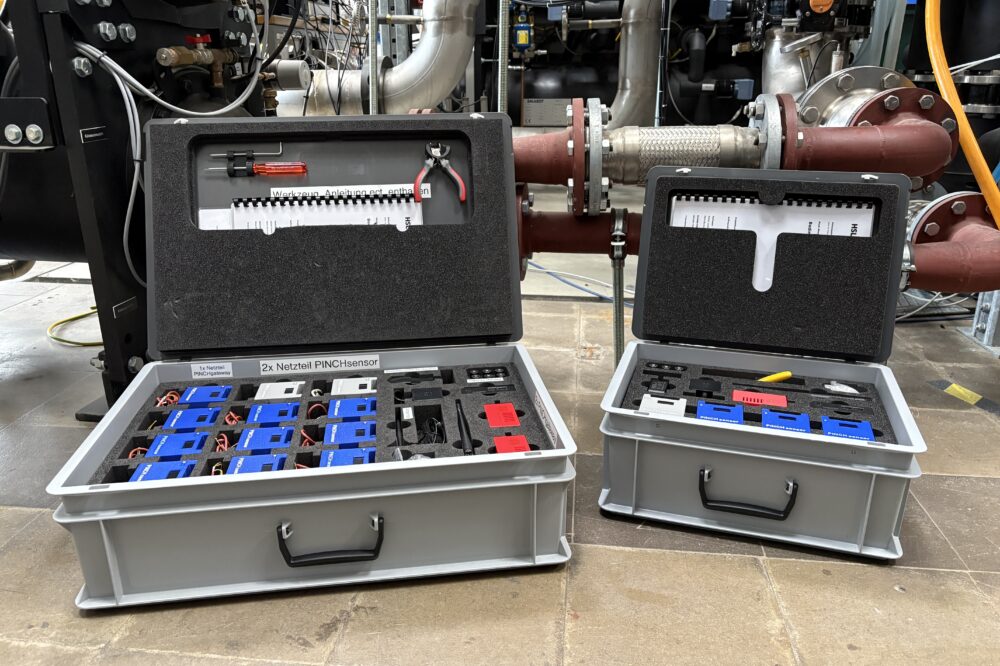

Variants

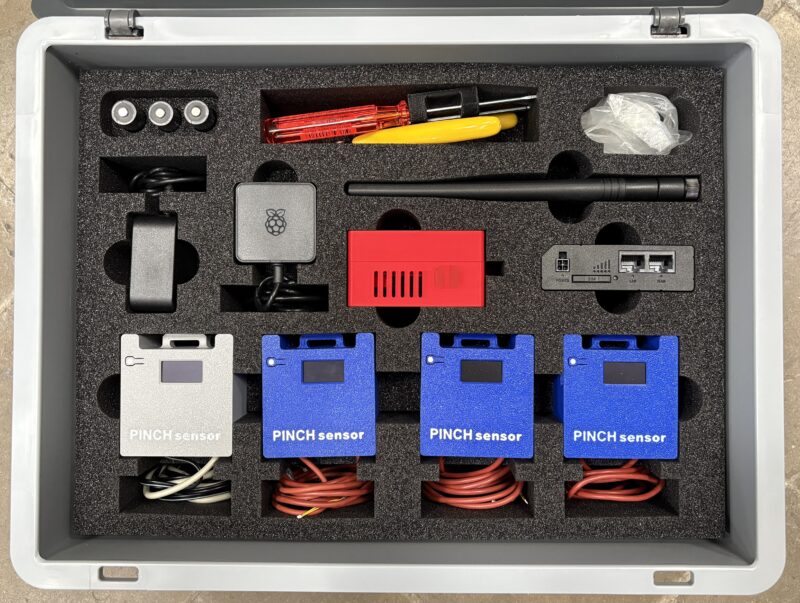

Measurement Case (small)
For measuring one thermal energy flow and 4 additional temperatures
Contents:
- 6 temperature sensors (2 in each blue box)
- 1 transmitter for volume flow sensor (grey box)
- 1 gateway (red box)
- 1 mobile router

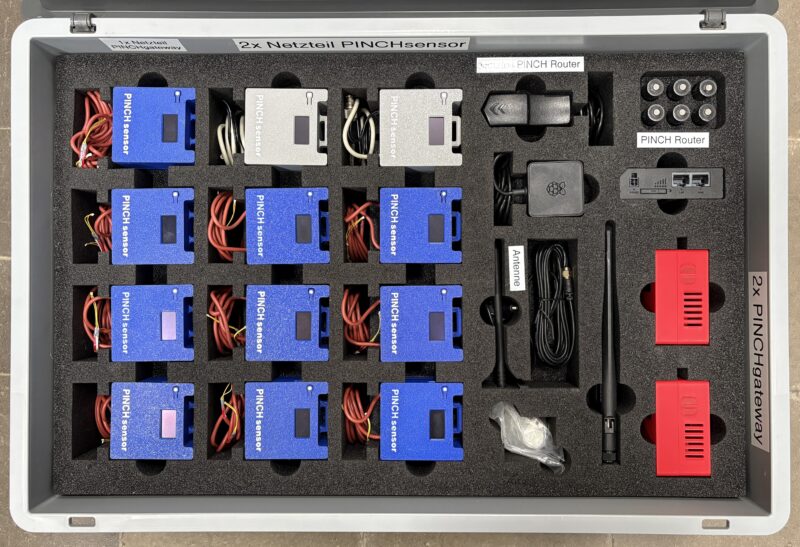

Measurement Case (large)
For measuring two thermal energy flows and 16 additional temperatures
Contents:
- 20 temperature sensors (2 in each blue box)
- 2 transmitter for volume flow sensors (grey boxes)
- 2 gateways (red boxes)
- 1 mobile router
Rent a Measurement Case
Pinch Measurement Cases can be rented directly through the booking form below for the desired time period. During the initial phase, rentals are limited to a maximum of one measurement case and one volumetric flow meter with two sensors per customer.
A mandatory training session lasting approximately half a day is required before the first rental. This training covers the correct installation, operation, and data collection using the measurement system. The training can be booked using the form below.
Tip: Before renting, create a measurement plan that includes the intended measurement points, measurement parameters, and the planned measurement period. This will allow you to select the necessary equipment specifically and make efficient use of the available rental period.
